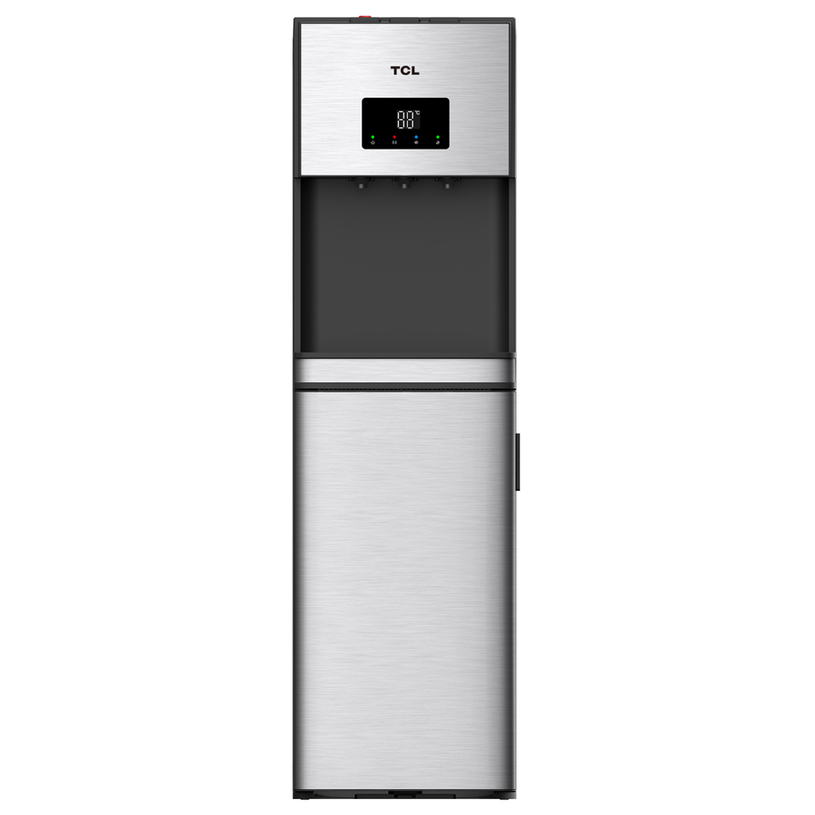

TCL TY-LWYR96TC Bottom-Loading Water Dispenser with Compressor Cooling
The bottle hides inside the base, while three water temperatures stay one touch away.
The TCL TY-LWYR96TC is a floor-standing bottom-loading water dispenser: the bottle slides into the base instead of being lifted overhead. It serves hot, cold and ambient water from a slim 310 mm wide stainless-steel body.
Bottom loading without lifting the bottle
The bottle sits in the compartment underneath and a pump draws water upwards. Refills happen at floor level, which suits shared use in an office as much as a home kitchen.
Hot, cold and ambient water
Hot water is delivered at 90 °C and above, cold water at up to 10 °C. Output rates are 5.00 L/hr hot and 2.00 L/hr cold, enough for a round of teas or a chilled jug.
Compressor cooling with 3.6 L and 0.8 L tanks
Cooling is handled by a refrigerant compressor, the same principle as in a fridge, so the water stays cold even during heavy summer use. The cold tank holds 3.6 L and the hot tank 0.8 L.
Slim stainless-steel body
The outer casing is all stainless steel and wipes clean with a damp cloth. A 310 x 357 mm footprint keeps it out of the way, while the 1086 mm height puts the taps at a comfortable jug-filling level.
Specifications
General
Performance
Dimensions & weight
Materials
Warranty
| COLD WATER DEBIT | 2.00 L/hr |
| HOT WATER DEBIT | 5.00 L/hr |
| Brand | TCL |
| MODEL: | TY-LWYR96TC |
| TYPE: | WITH COMPRESSOR |
| COLD WATER DEBIT: | 2.00 L/hr |
| HOT WATER DEBIT: | 5.00 L/hr |
| CUPBOARD: | No |
| DISPLAY: | Yes |
| WARRANTY: | 24 MONTHS |
| WEIGHT WITH PACKAGE: | 16.700 kg |
| EAN | 8040633 |
