CLAGE DSX Touch Tankless Water Heater, 18/21/24/27 kW, 400 V, Touch Display, Wi-Fi and Bluetooth
Precise water temperature from 20 °C to 60 °C, set with a slider on a real-glass display.
The CLAGE DSX Touch tankless water heater heats water on demand and supplies several taps at once: shower, bathtub and washbasin. It is operated from the built-in real-glass display, from a smartphone app or from the FXS 3 remote control included in the box. The power rating is selected during installation: 18, 21, 24 or 27 kW.

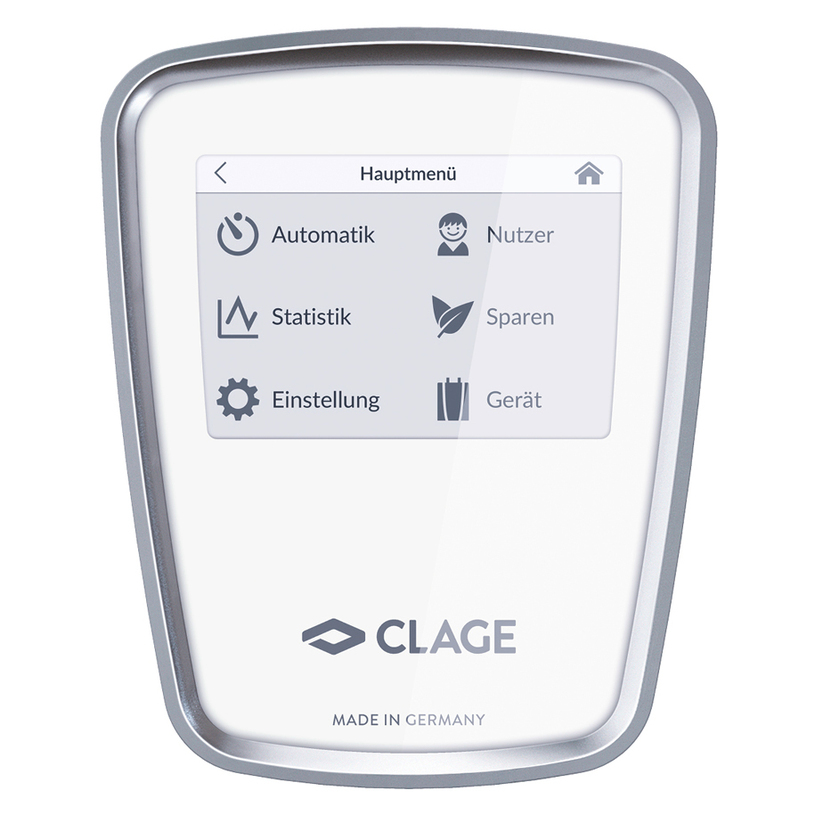

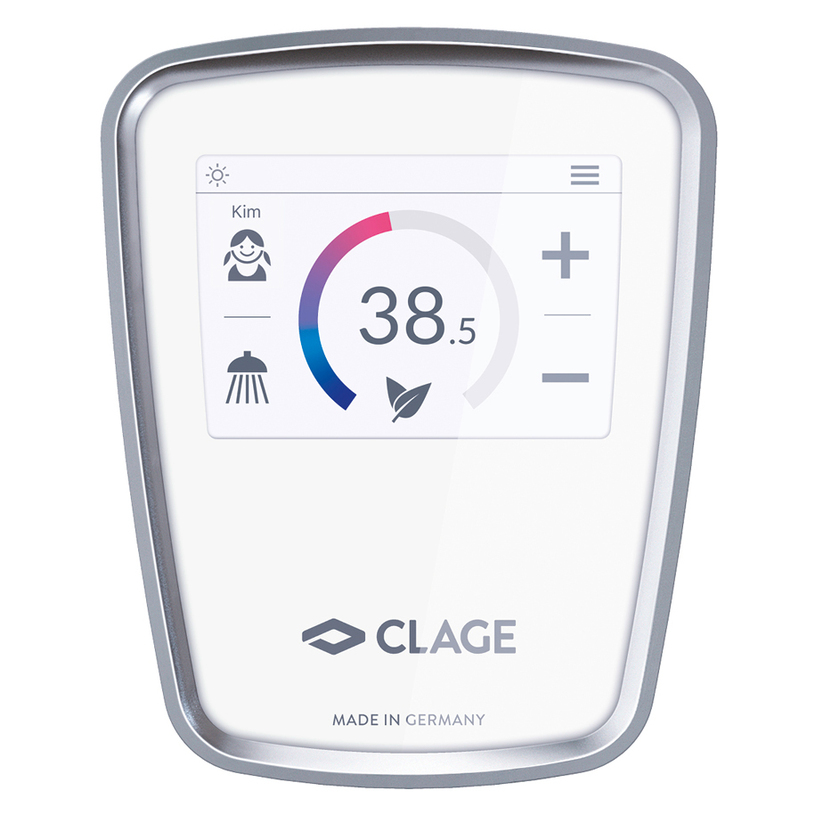

Real-glass touch display with a profile for every user

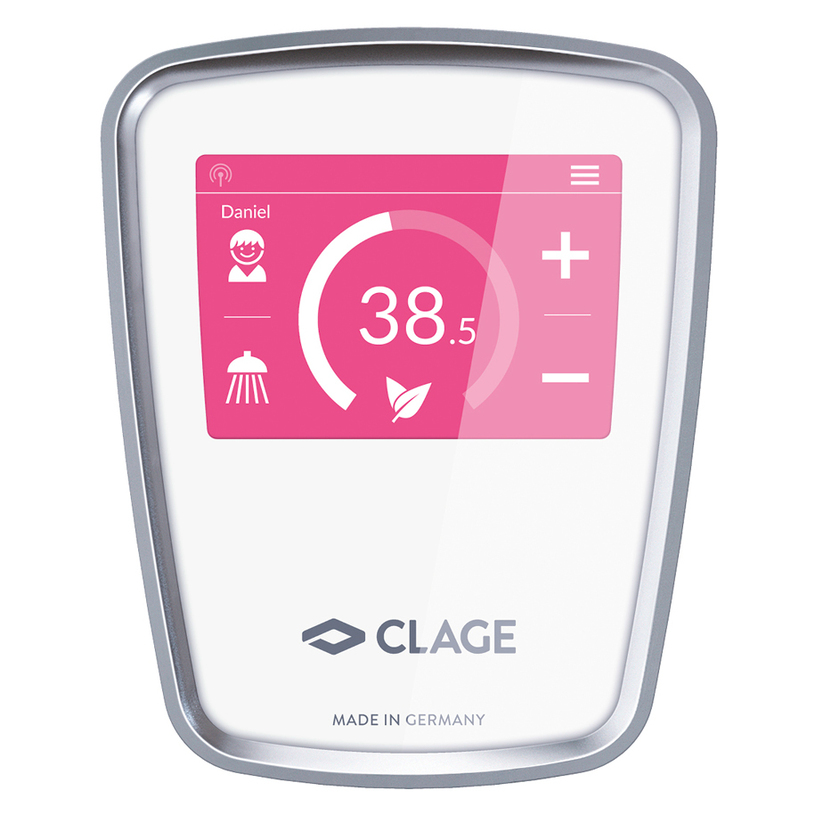

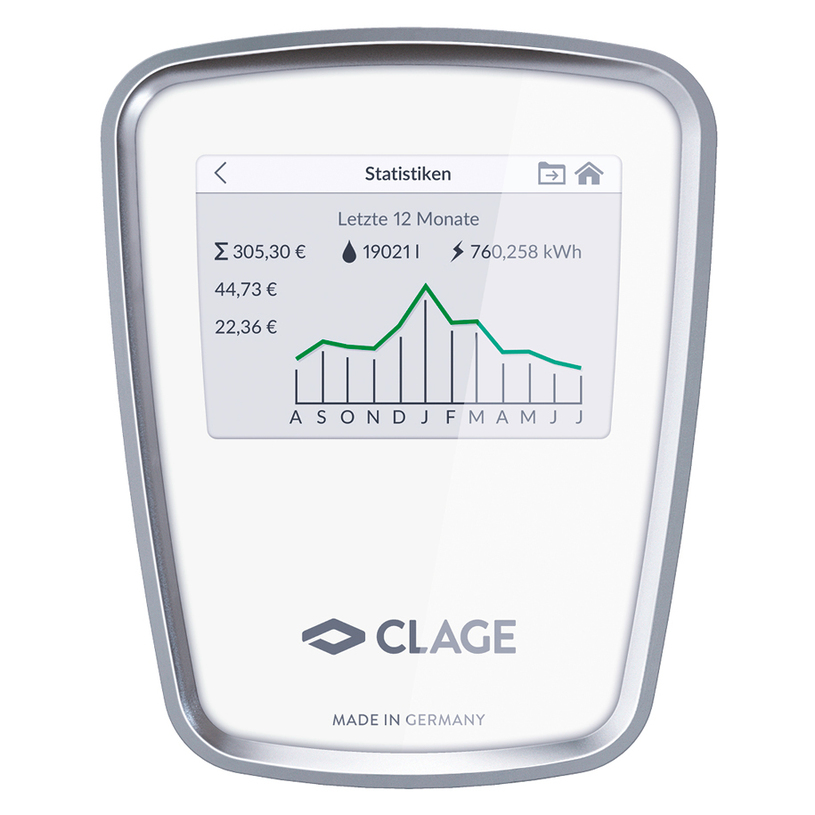

On the display you can create separate users with their own temperature profiles and review electricity and hot water consumption over different periods. When a tap is opened, the screen colour shifts from blue to red according to the set outlet temperature.
TTC and SERVOTRONIC hold the temperature when pressure changes
TWIN TEMPERATURE Control and SERVOTRONIC dynamic flow control keep the selected value steady even when another tap is opened. The heater starts at a flow of just 1.5 l/min, which suits quick hand washing.
IES bare-wire heating system with less limescale
The IES bare-wire heating system builds up less limescale and stays easy to service. The layout of the heating ducts makes it resistant to air in the pipes, while the electronic safety system monitors air bubbles, temperature and pressure.
Smartphone control and the FXS 3 remote in the box
Integrated Wi-Fi and Bluetooth connect the unit to a phone, tablet or smart speaker via the Smart Control app. The FXS 3 wireless remote ships with the appliance and adjusts the temperature from anywhere in the bathroom.
Slim 9.6 cm body with flexible connection options
At 9.6 cm deep the unit stays close to the wall even in a narrow bathroom. The electrical connection can be surface- or flush-mounted, from the top or the bottom, and the water connections are G ½". The heater accepts pre-heated water up to 70 °C and works with a solar system.
Specifications
General
Power and supply
Performance
Dimensions and weight
In the box
| Brand | CLAGE |
| MODEL: | DSX TOUCH |
| KIND: | ELECTRIC |
| HEIGHT: | 46.80 см |
| WIDTH: | 23.90 см |
| DEPTH: | 9.60 см |
| ELECTRICAL POWER TYPE: | THREE PHASE |
| ENERGY CLASS: | A |
| ANNUAL ENERGY CONSUMPTION: | 484 kWh |
| WARRANTY: | 24 MONTHS |
| EAN | 4010436366003 |
