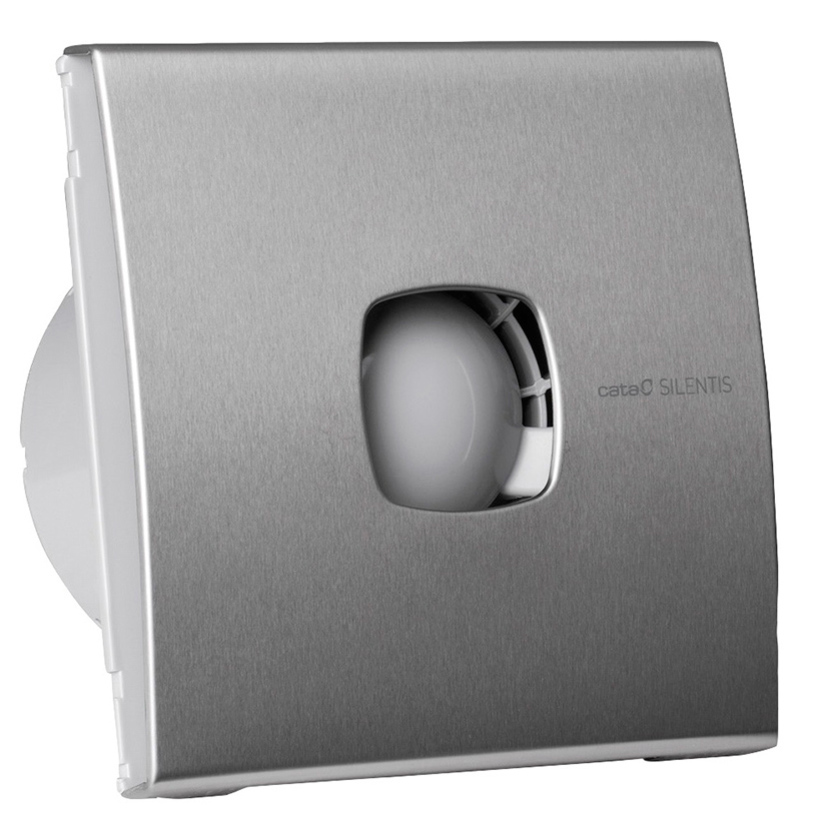

CATA SILENTIS 10 INOX Bathroom Extractor Fan, Ø100 mm, 98 m3/h
Built-in backdraught valve and a removable front panel for quick cleaning.
The CATA SILENTIS 10 INOX bathroom extractor fan fits a Ø100 mm duct opening and moves 98 m3/h at a noise level of 39 dB. It mounts on the wall or ceiling and carries an INOX-finish front panel.
Quiet operation at 39 dB
Rated power draw is 15 W and the 98 m3/h airflow suits typical domestic bathrooms and WCs. The fan is discreet enough to keep running after a shower.
Backdraught valve against reverse airflow
The valve closes when the fan is off, keeping duct air out of the room. The front panel comes off without tools for cleaning off dust and moisture.
Wall or ceiling fitting for 100 to 150 mm openings
The front panel covers openings from 140x140 mm to 200x200 mm, so an older fan can be replaced without retiling. IP X4 protection allows installation in wet rooms.
Specifications
General
INOXColour
YesBackdraught valve
NoAdditional extras
Performance
98 m3/hAirflow
39 dBNoise level
Power
15 WRated power
IP X4Protection rating
Dimensions & installation
100 mmDuct diameter
from 100 mm to 150 mmSuitable mounting opening
from 140x140 mm to 200x200 mmFront panel size
Wall or ceilingMounting
| DIAMETER | 100 mm |
| DEBIT | 98 m3/h |
| NOISE LEVEL | 39 dB |
| COLOUR | INOX |
| VALVE | Yes |
| Brand | CATA |
| MODEL: | SILENTIS 10 INOX |
| DIAMETER: | 100 mm |
| DEBIT: | 98 m3/h |
| NOISE LEVEL: | 39 dB |
| ADDITIONAL EXTRAS: | No |
| VALVE: | Yes |
| COLOUR: | INOX |
| WARRANTY: | 24 MONTHS |
| MODEL: | SILENTIS 10 INOX |
| DIAMETER: | 100 mm |
| DEBIT: | 98 m3/h |
| NOISE LEVEL: | 39 dB |
| COLOUR: | INOX |
| ADDITIONAL EXTRAS: | No |
| VALVE: | Yes |
| WARRANTY: | 24 MONTHS |
| MODEL: | SILENTIS 10 INOX |
| DIAMETER: | 100 mm |
| DEBIT: | 98 m3/h |
| NOISE LEVEL: | 39 dB |
| COLOUR: | INOX |
| ADDITIONAL EXTRAS: | No |
| VALVE: | Yes |
| WARRANTY: | 24 MONTHS |
| EAN | 8422248016957 |
