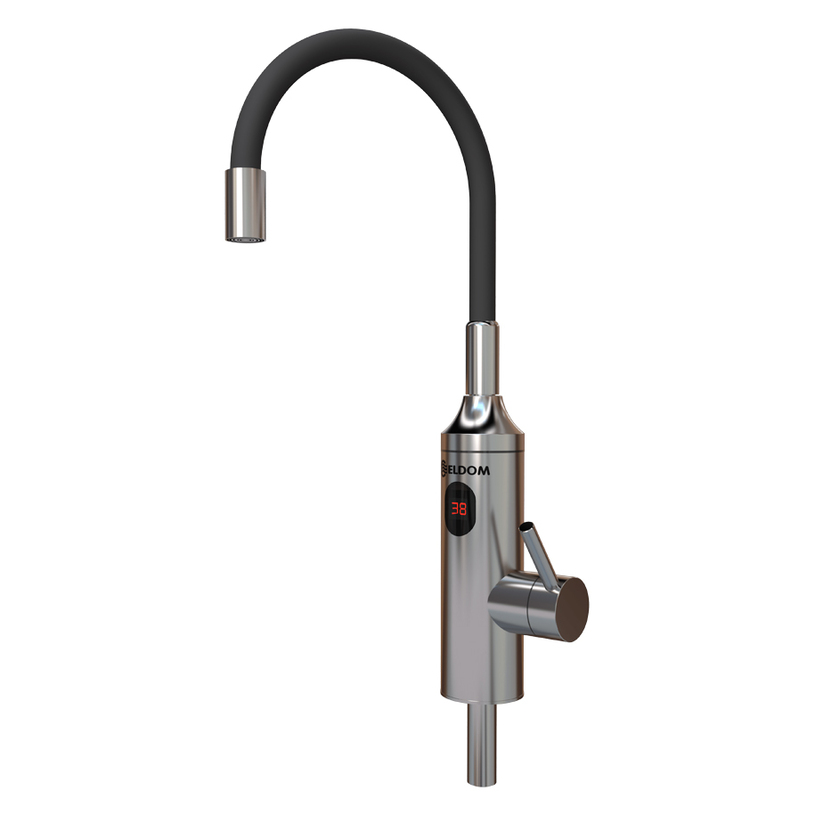

ELDOM E34 Instant Water Heater, 3.3 kW, Over-Sink, Energy Class A
Hot water the moment you open the tap, with no tank and no warm-up wait.
The ELDOM E34 instant water heater warms water as it flows and mounts directly above the sink in a kitchen, bathroom or utility room. It runs off a standard 230 V socket, while the flexible spout swivels freely over the basin. A cable with a Schuko plug is included.
Heats on demand, with no storage tank
Water is heated as it passes through the element, so no energy is wasted keeping a tank warm. At just 5.7 cm deep, the unit takes up minimal wall space above the sink.
3.3 kW from a standard 230 V socket
The single-phase supply requires a 2.5 mm² minimum cable cross-section, so no three-phase wiring is needed. Load profile XXS and energy class A, with annual energy consumption of 465 kWh.
Mechanical thermostat for setting the temperature
An external capillary thermostat holds the set outlet temperature and cuts the element off in case of overheating. Control is mechanical, with a clearly indexed knob.
IP24 rating for wet rooms
The housing is protected against splashing water from any direction and against solid objects larger than 12.5 mm. The heated water is suitable for both sanitary and food use.
Specifications
General
Power and supply
Dimensions and weight
In the box
General
Warranty
| TYPE | FREE-FLOWING |
| NOMINAL POWER KW | 3.3 KW |
| Brand | ELDOM |
| MODEL: | Е34 |
| KIND: | ELECTRIC |
| HEIGHT: | 42.00 см |
| WIDTH: | 20.00 см |
| DEPTH: | 5.70 см |
| TYPE: | FREE-FLOWING |
| ELECTRICAL POWER TYPE: | MONOPHASIC |
| THERMOREGULATOR: | МЕХАНИЧЕН |
| NOMINAL POWER KW: | 3.3 KW |
| ENERGY CLASS: | A |
| ANNUAL ENERGY CONSUMPTION: | 465 |
| WARRANTY: | 24 MONTHS |
| EAN | 3800035739459 |
