UVC PRO
Healthy Air Healthy Living
Haier UVC Pro inhibits bacteria and viruses in the air, purifies the air by emitting UV-C band ray and generating positive and negative lons group.
UVC Wavelength
UVC is the shorter, and more energetic wavelength ranging from 200-280nm of the sunlight spectrum. It is particularly efficient in destroying genetic material.
Plasma
UV lamp can emit a specific wavelength which stimulates H2O nano and O2 in the air and generates positive and negative ions group, which bonds with bacteria and virues to inhibit them.
Powerful UV Lamp
The New UVC Pro lamp emits rays near the air inlet, killing the airborne hazards passing through.
Safety Lock
When the front panel is open, the air conditioner will automatically turn off the UVC lights. It avoids potential risks that human bodies get directly exposed.
Benefit
Haier UVC Pro can sterilize both indoor unit and indoor ari with UVC-band ray, making indoor unit clean and delivering clean air.
Safe, Reliable Operation
Eliminates the airborne hazards, with no harmful chemicals, no residuals. and no burden to the environment.
Efficient Sterilization
Haier UVC Pro sterilization utilizes the wavelength between 265-275 nm, which is stronger in destroying the invisible pollutants in the air.
Healthier room air
Haier UVC Pro can sterilize both indoor unit and indoor air with UVC ray and plasma. making indoor unit clean and delivering clean air.
UVC Sterilization
Healthy Air Healthy Livihg
Haier air conditioner is equipped with UVC GENERATOR module. The module is tested and proven to be effective in inhibiting Covid-19 virus with up to 99.998% efficiency.
Technology
UVC Wavelength
UVC is the shorter, and more energetic wavelength ranging from 200-280nm of the sunlight spectrum. It is particularly efficient in destroying genetic material.
Build-in UV Lights
The UV lights emit rays near the air inlet where room air circulates into the AC. The airborne hazards are instantly get killed when passes through the area.
Safety Lock
When the front panel is open, the air conditioner will automatically turn off the UVC lights. It avoids potential risks that human bodies get directly exposed.
Benefit
Safe, Reliable Operation
It eliminates the airborne hazards, with no harmful chemicals, no residuals, and no burden to the environment.
Efficient Sterilization
Haier UVC sterilization utilizes the wavelength between 265-275 nm, which is stronger in destroying the invisible pollutants in the air.
99.998%
It is tested and proven to be effective in inhibiting Covid-19 virus with 99.998% efficiency.
Self Clean
Freezes the evaporator with moisture in the air, and then removes away dirt in melting, ensuring clean air out of the air conditioner.
Wi-Fi Control (hOn)
Download the Haier hOn App to an Apple or Android smart device, and link the equipment to the smart device for system control from whenever and wherever you want.
Conda Plus Airflow
Makes the wind out of the air conditioner further, faster, and stronger, so that the cool air can be evenly delivered to every corner of the room.
TECHNOLOGY
Dirt accumulates on the evaporator during operation. If not cleaned regularly, the dirt leads to the growth of mold and bacteria that compromise the air quality coming through the air conditioners. It also reduces air conditioning efficiency by 15 - 30%.
Cold Expansion
Frost on the evaporator/condenser generates strong cold expansion force that can easily peel off dirt on the surface.
Express Washing
Hydrophilic aluminum with smaller angle helps increase water drainage efficiency by 20%.
Anti-bacteria
The coating on the aluminum contains silver nanoparticles that kill bacteria and inhibit their growth >99.99% efficiency.
Cleaner, More Efficient Air
The technology kills bacteria and keeps the evaporator clean. It enables the AC to work at full cooling capacity and deliver cleaner air.
WI-FI CONTROL
Control Your Air Conditioner Anytime Anywhere
Imagine when you're hurrying back to your home in hot summer, or lying on the sofa at home but cannot find the remote controller. What you want is easily accessible control to your air conditioner from anywhere and anytime with Haier Smart Air 2 app on your phone or tablet.
Group Control
Control multiple units with only one smart phone in hand.
Smart Reminder
Sends regular notifications to user to clean the filter mesh.
Weekly Timer
Sets temperature and fan speed for the week to come.
Error Alert
Error code is shown on the app when it malfunctions.
Convenient Control
Controls air conditioner from anywhere and anytime via network.
Custom Program
One button for user DIY program
Voice ln APP
Built–in voice control makes convenience for the interaction.
Holiday Mode Setting
Holiday mode with one touch, just enjoy without worrying.
Energy Consumption
Know your electricity consumption in real time
How to use
Press the "ECO" button with Remote Controller
- Press once, reach ECO 1 Level, energy can be saved up to 1o% compared with normal mode.
- Press twice, reach ECO 2 level, energy can be saved up to 29% compared with normal mode.
- Press 3 times, reach ECO 3 level, energy can be saved up to 52% compared with normal mode.
INVERTER PLUS
Integrates TLFM inverter control, PID inverter control and A–PAM inverter control to achieve smart control of the air conditioner, and in the meanwhile, maximize comfort, reliability and efficient performance
TLFM Inverter Control
TLFM, or Triple Linkage Frequency Modulation, inverter control utilizes 3 different voltage controls to manage the optimal operation efficiency at every frequency phase.
PID Inverter Control
PID, or Proportion Integration Differentiation, inverter control maximizes the working frequency before reaching the desired temperature, and after that, constantly makes real–time adjustments to match room air temperature with the desired temperature.
A-PAM Inverter Control
A–PAM, or Adoption–Pulse Amplitude Modulation, inverter control automatically adjusts DC bus voltage in accordance with the compressor load, to increase operation voltage range.
Energy-Saving Performance
Inverter Plus achieves high working efficiency at all frequency phases. The cooling/heating performance is much faster and more powerful.
Cool, Comfortable Airflow
When the air conditioner is on, Inverter Plus reaches desired temperature much quicker than the conventional, and then maintain it with ±0.1°C precise temperature control.
Reliability
Inverter Plus adjusts DC voltage to achieve stable operation between 120V–264V with ideal voltage control. In remote areas, users can enjoy cool air despite power fluctuations
WHISPERING AIR
Feel The Inner Peace
Have you ever disturbed by a noisy air conditioner humming all day and all night? In hot summer, powerful air conditioning is simply not enough. Quiet operation is equally important to have the inner peace of mind. Just enjoy both of them with Haier whispering air quiet to 15dB(A).*
Optimized Air Duct
The air inlet is enlarged by 17%. The space between the evaporator and the front panel, and the air outlet are also enlarged. The optimization helps reduce the noise.
Optimized Cross Flow Fan
The inclination angle of the fan is optimized to 25° to make sure the air flow more concentrated to minimize the noise.
Special Electronic Control
The special electronic control system uses A–PAM DC inverter technology and DC fan motor. It provides high static pressure capability to minimize the operation noise of the indoor unit
I FEEL - One Button Intelligent Temperature Control, More Comfortable
Detect the temperature around you with the remote controller no matter where you are in the room. So the air conditioner will optimize its operation based on the information to provide better air conditioning experience.
The performance of air conditioner may vary in different working conditions. If the room temperature is higher/lower than expected, you will feel uncomfortable.I FEEL is the least Haier can design but matter the most to your experience
Built-in Temperature Sensor
With the high definition temperature sensor built inside, the remote controller of the air conditioner can precisely monitor the temperature around
Easy Control
With a click on I FEEL button on the remote controller, the air conditioner receives real–time temperature data and optimizes working conditions to match the desired temperature set by users
Comfortable Experience
The function optimizes the working conditions of air conditioner to deliver airflow at the best temperature that you need
The Coanda plus airflow, made up of 3 parts under micro–perspective, delivers air in a more intuitive way, and forms the all–space circulation.
BENEFIT
Ceiling cooling
When the cooling mode is turned on, users can avoid direct exposure to the cold airflow blowing out of the air conditioner. Spread out to the floor of the room in a faster way
Carpet heating
When the heating mode is turned on, the warm air is delivered directly to cover the floor. And then the warm air circulates to the whole space and ensures the temperature is balanced at every corner of your room
Archimedean spiral
The application of the dual blade wind deflector structure creates the unique Archimedean spiral that directs the cold airflow to the ceiling with 35° elevation.
Venturi Effect
The optimal pressure expansion duct that is narrow inside and wide outside between dual layers where Venturi Effect occurs when air flows through the duct. Thus, the airflow is instantly released at high speed.
Supplemented Airflow
The airflow below the air deflector, absorbed tightly by the negative pressure generated by the faster airflow in–between, joins the main airflow and makes it even more stronger.
| CAPACITYCOOLING(NOMINAL) | 5.300 KW |
| CAPACITYHEATING(NOMINAL) | 5.800 KW |
| ENERGY CLASS COOLING | A+++ |
| ENERGY CLASS HEATING | A++ |
| POWERCONSUMPTIONCOOLING | 1.510 KW |
| POWERCONSHEATING | 1.450 KW |
| TEMPERATURE RANGE COOLING | -20/43 °C |
| EFFICIENT IN HEATING MODE UPTO | -20 °C |
| WI-FI | Yes |
| Brand | HAIER |

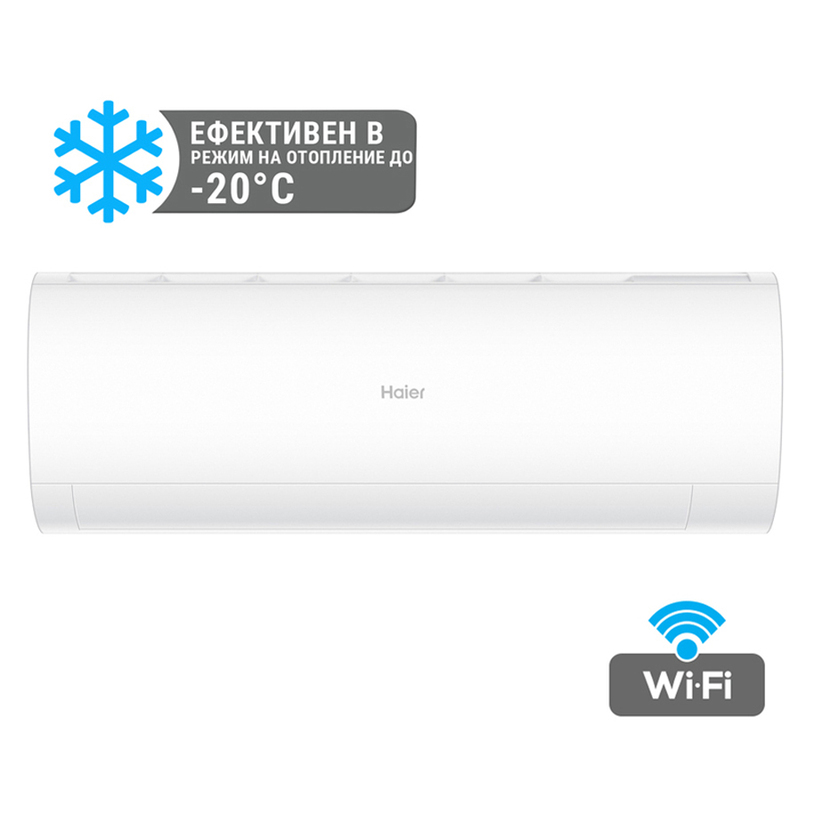

| MODEL: | AS50PDPHRA-PRE/1U50KEPFRA-H |
| CAPACITY COOLING (BTU/h): | 18000 BTU/h |
| CAPACITYCOOLING(NOMINAL): | 5.300 KW |
| CAPACITYHEATING(NOMINAL): | 5.800 KW |
| SEASONAL COEFFICIENT SCOP: | 4.6 |
| SEASONAL COEFFICIENT SEER: | 8.5 |
| ENERGY CLASS COOLING: | A+++ |
| ENERGY CLASS HEATING: | A++ |
| POWERCONSUMPTIONCOOLING: | 1.510 KW |
| TEMPERATURE RANGE COOLING: | -20/43 °C |
| EFFICIENT IN HEATING MODE UPTO: | -20 °C |
| BACTERIA KILLING FILTER: | Yes |
| WI-FI: | Yes |
| AUTO RESTART: | Yes |
| UVC LAMP AGAINST VIRUSES AND B: | Yes |
| SELFCL.STERILIZ.INDOOR UNIT: | Yes |
| NOISE LEV.INSIDE UNIT MIN/MAX: | 28/60 dB |
| NOISE LEV.OUTSIDE UNIT: | 65 dB |
| AIR CIRCULATION (M3/H): | 980 М3/Ч |
| DIMENSIONS W/H/D(INDOOR UNIT): | 975/318/220 ММ |
| DIMENSIONS W/H/D(OUTDOOR UNIT): | 820/642/306 ММ |
| WEIGHT INSIDE UNIT: | 11.6 KG |
| WEIGHT OUTSIDE UNIT: | 37.8 KG |
| REFRIGERANT TYPE: | R32 |
| WARRANTY: | 24 MONTHS |
| EAN | 6932063849590 |
