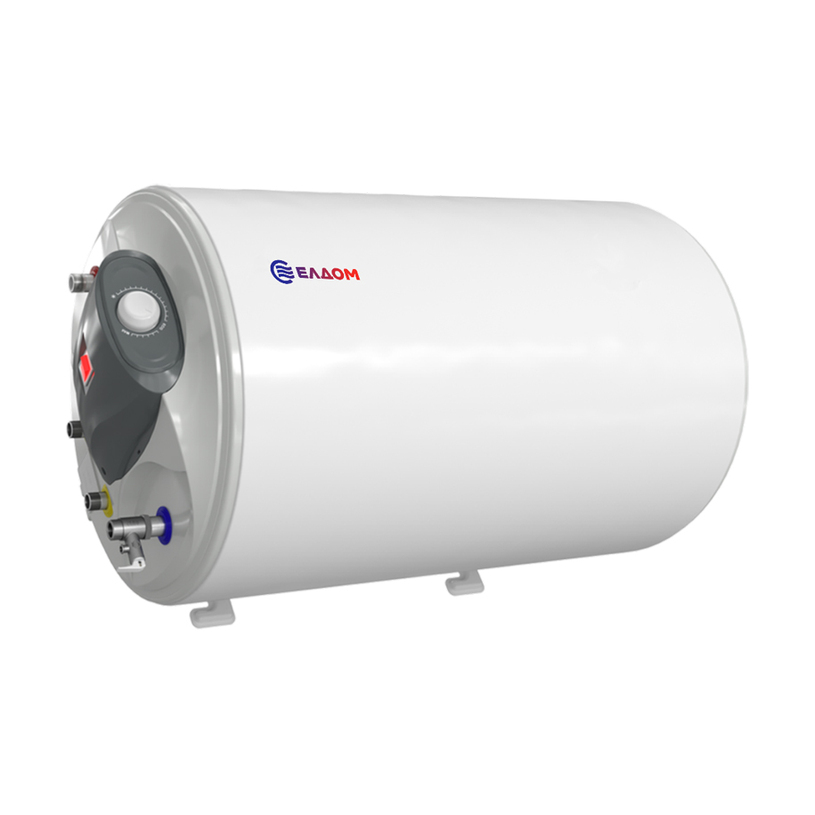

ELDOM WH08046L Horizontal Storage Water Heater, 80 L, 3 kW
Horizontal mounting with 77 L of usable hot water for the whole family.
The ELDOM WH08046L is a horizontal storage water heater with an 80 L enamelled tank and the electrical section and pipe connections on the left. It mounts high on the wall, where a vertical unit simply would not fit.
3 kW heating element for fast recovery
The copper immersion element runs on a standard single-phase supply and delivers the highest output commonly offered on domestic water heaters. Reheating is quick enough for several showers in a row.
Enamelled tank with six-stage protection
The vitreous enamel lining protects the steel tank from corrosion in hard water. A six-stage safety system monitors pressure, temperature and dry running, while the mechanical thermostat is set with a single turn of the knob.
84 cm body height for under-ceiling mounting
A 46.2 cm diameter spreads the volume lengthwise and keeps the wall above the basin or washing machine clear. The connections are on the left, so check the layout of your plumbing before ordering.
Specifications
General
Materials
General
Power and supply
Dimensions and weight
Warranty
| TYPE | ХОРИЗОНТАЛЕН |
| NOMINAL POWER KW | 3 KW |
| Brand | ELDOM |
| MODEL: | WH08046L |
| CAPACITY: | 80 L |
| TANK CAPACITY: | 77.0 L |
| HEIGHT: | 84.00 см |
| DIAMETER SM: | 46.2 см |
| TYPE: | ХОРИЗОНТАЛЕН |
| TANK TYPE: | GLAZED |
| HEATER TYPE: | COPPER |
| THERMOREGULATOR: | МЕХАНИЧЕН |
| ENERGY CLASS: | C |
| ELECTRICAL POWER TYPE: | MONOPHASIC |
| ANODE TESTER: | No |
| ANNUAL ENERGY CONSUMPTION: | 1394 kWh |
| HEAT EXCHANGER: | No |
| PROTECTION: | 6 СТЕПЕННА |
| WARRANTY: | 60 MONTHS |
| EAN | 3800035720457 |
