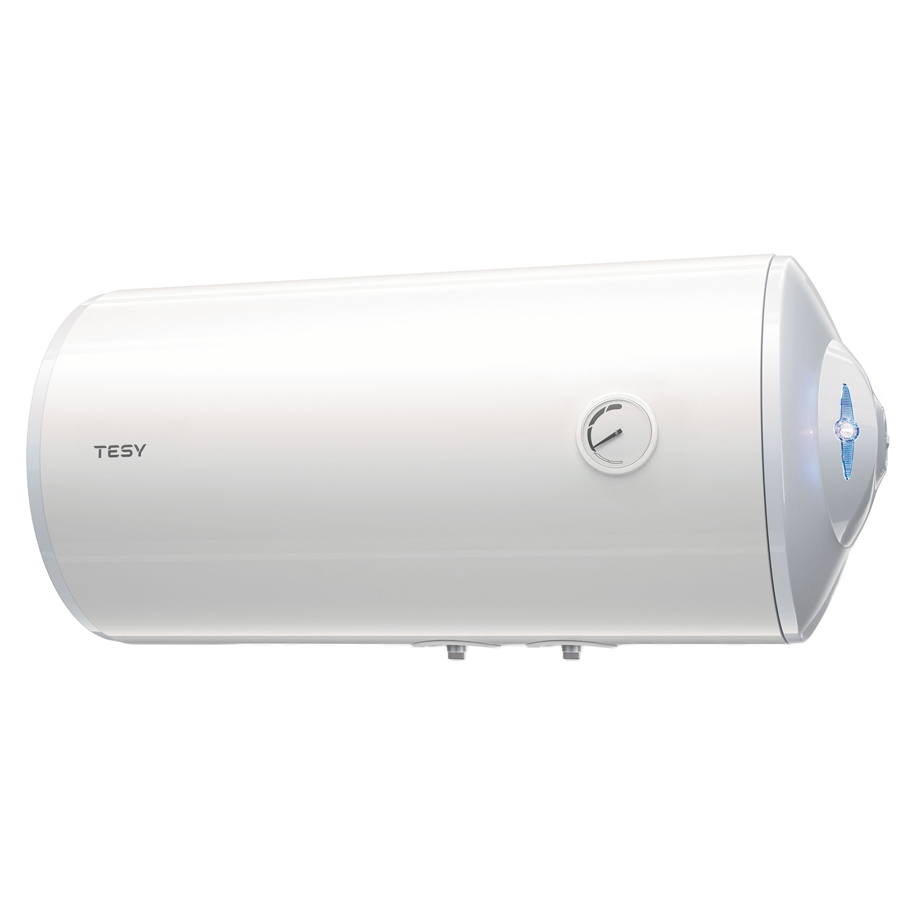

TESY GCH 503520 B12 TSR Horizontal Water Heater, 50 L
Horizontal mounting in a niche or above a door — hot water without taking up wall space.
The TESY GCH 503520 B12 TSR storage water heater from the BiLight Slim 50 H range mounts horizontally and delivers 50 litres of hot water for bathroom and kitchen. Its 2000 W element heats water from 15 to 60 °C in 1 h 18 min. A slim 353 mm diameter lets it fit in narrow niches, above a door or close to the ceiling where an upright model will not go.
Horizontal mounting that frees up space
The horizontal design of the TESY GCH 503520 B12 TSR keeps your wall clear and tucks the tank into a niche or above the bathroom door. The electrical connections sit on the right-hand side, which defines the access side for installation and service.
Glass-ceramic tank with anode protection
The tank of the TESY GCH 503520 B12 TSR is glass-ceramic lined and protected against corrosion by an anode. Plasma welding and a stainless steel inlet pipe keep the vessel sound through daily use, including with harder water.
Copper heating element and external thermostat
A copper heating element transfers heat quickly and is easy to replace during service. The mechanical thermostat of the TESY GCH 503520 B12 TSR is adjusted from an external knob, so you can set the temperature to suit the season without opening the panel.
Insutech insulation holds the heat longer
Insutech insulation and an interrupted thermal bridge cut standby heat losses of the TESY GCH 503520 B12 TSR between heating cycles. Annual consumption is 1418 kWh in energy class C with load profile M, typical for a single-bathroom household.
Specifications
General
Power and energy
Dimensions
Materials and protection
Warranty
| ТИП | ХОРИЗОНТАЛЕН |
| НОМИНАЛНА МОЩНОСТ-KW | 2 KW |
| Марка | TESY |
| МОДЕЛ: | GCH 503520 B12 TSR |
| ОБЕМНА ГРУПА: | 50 L |
| РЕАЛНА ВМЕСТИМОСТ: | 50.0 L |
| ВИСОЧИНА: | 80.00 см |
| ДИАМЕТЪР СМ: | 35.0 см |
| ТИП: | ХОРИЗОНТАЛЕН |
| ВИД ВОДОСЪДЪРЖАТЕЛ: | СТЪКЛОКЕРАМИЧЕН |
| ТИП НАГРЕВАТЕЛ: | МЕДЕН |
| ТЕРМОРЕГУЛАТОР: | МЕХАНИЧЕН |
| ЕНЕРГИЕН КЛАС: | C |
| ТИП ЕЛЕКТРИЧЕСКО ЗАХРАНВАНЕ: | МОНОФАЗНО |
| АНОДЕН ТЕСТЕР: | Не |
| ГОДИШНА ЕНЕРГИЙНА КОНСУМАЦИЯ: | 1437 kWh |
| СЕРПЕНТИНА: | Не |
| ЗАЩИТА: | АНОДНА |
| ГАРАНЦИЯ: | 60 МЕСЕЦА |
| EAN | 3800879115143 |
