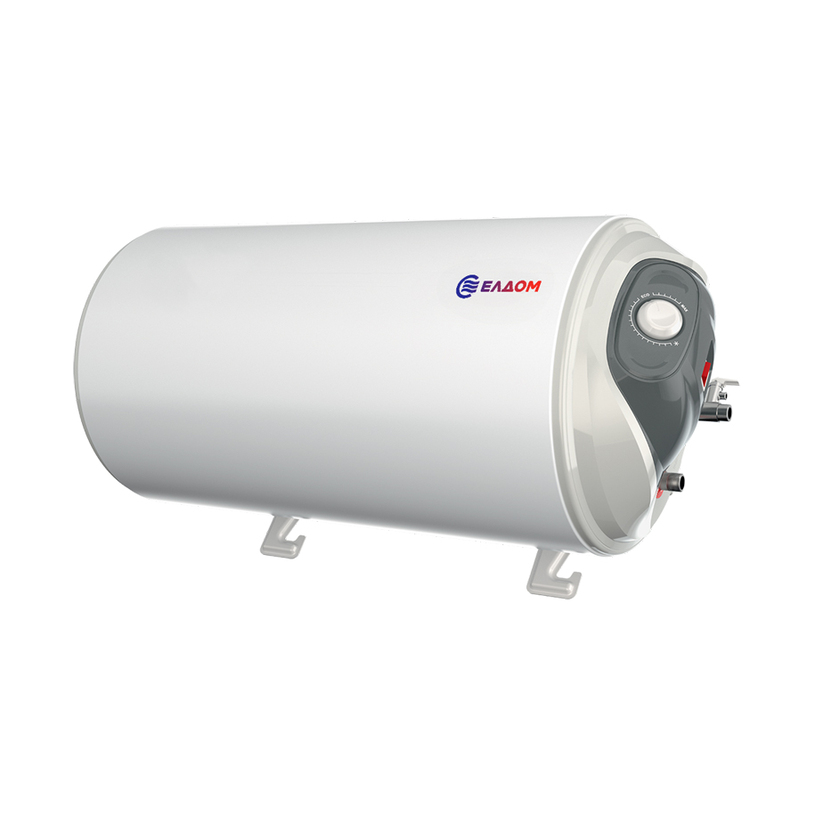

ELDOM WH05039R Horizontal Storage Water Heater 50 L, 2 kW, Enamelled Tank
Right-hand connections and horizontal wall mounting free up the space above the door or under the ceiling.
The ELDOM WH05039R is a horizontally wall-mounted storage water heater with the electrical section and plumbing connections on the right-hand side. Its enamelled 50 L tank holds 45 L of usable water, heated by a 2 kW immersion copper element.
Horizontal mounting with right-hand connections
The heater mounts lying flat on the wall and connects through G1/2 threads for hot and cold water. At 760 mm long and 387 mm in diameter, it fits above a door, in a recess or under the ceiling of a bathroom or utility room.
66 L of mixed water at 40 °C for a full shower
The declared load profile is M, matching the needs of one to two people. The 45 L of usable water covers a shower and everyday kitchen use without waiting in between.
Enamelled tank and six-stage protection system
The steel tank is glazed with enamel that resists corrosion in hard water. Six protection stages guard against overpressure and overheating, while the IP24 rating allows installation in a damp room.
Mechanical thermostat preset to 60 °C
Temperature is set with a single rotary knob, with no menus and no electronics to service. The 60 °C setting is the economical operating point at which the declared annual consumption of 1419 kWh is measured.
Specifications
Main
Materials
Power and supply
Dimensions and weight
Warranty
Main
| TYPE | ХОРИЗОНТАЛЕН |
| NOMINAL POWER KW | 2 KW |
| Brand | ELDOM |
| MODEL: | WH05039R |
| CAPACITY: | 50 L |
| TANK CAPACITY: | 45.0 L |
| HEIGHT: | 76.00 см |
| DIAMETER SM: | 39.0 см |
| TYPE: | ХОРИЗОНТАЛЕН |
| TANK TYPE: | GLAZED |
| HEATER TYPE: | COPPER |
| THERMOREGULATOR: | МЕХАНИЧЕН |
| ENERGY CLASS: | C |
| ELECTRICAL POWER TYPE: | MONOPHASIC |
| ANODE TESTER: | No |
| ANNUAL ENERGY CONSUMPTION: | 1419 kWh |
| HEAT EXCHANGER: | No |
| PROTECTION: | 6 СТЕПЕННА |
| WARRANTY: | 60 MONTHS |
| EAN | 3800035711851 |
