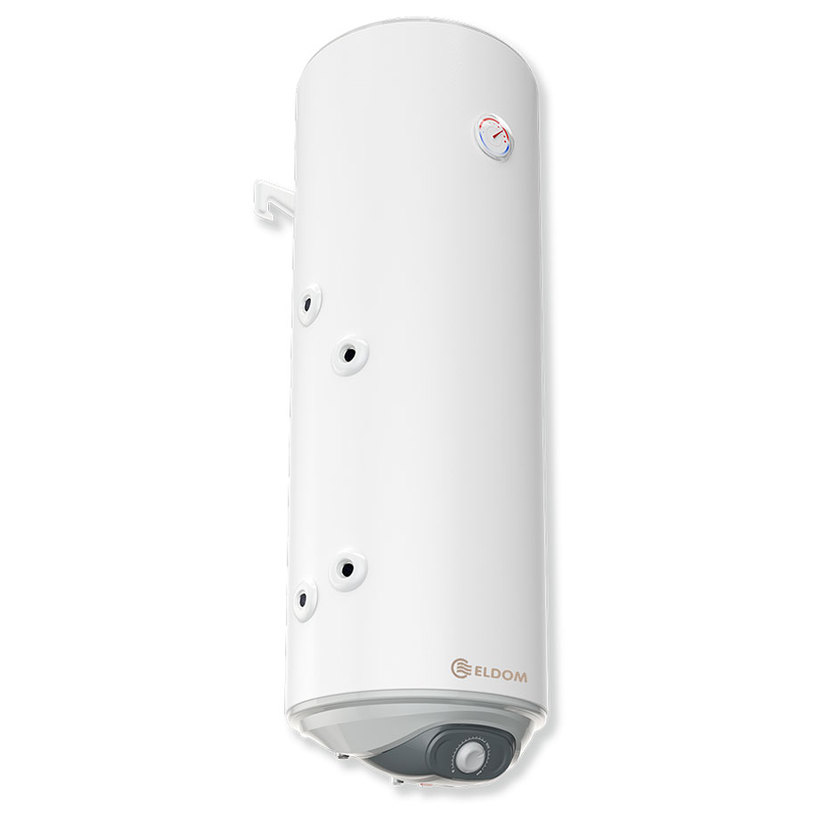

ELDOM WV08039SL GREEN LINE 80 L Tank Water Heater, 3 kW, Left Coil
Combined heating from a solar collector or heat pump, with the electric element as backup.
The ELDOM WV08039SL GREEN LINE is a vertical wall-mounted water heater with an enamelled tank and one left-side heat exchanger coil. Real capacity is 73 L in the 80 L size class, and the 39 cm diameter fits narrow bathrooms and utility spaces. The coil takes heat from an external source, while the copper element tops the water up.
0.49 m² coil for solar collector or heat pump
The low-mounted exchanger covers a large part of the volume and absorbs energy from an alternative source before the electric heating kicks in. The connections are on the left side, with 1/2" threads.
Enamelled tank with two magnesium anodes
The interior uses SHIELD zirconium enamel developed for wear resistance. Anode protection covers the entire internal volume and slows corrosion in hard-water areas.
Six-level protection system and IP24 rating
Safety is layered: an elliptical flange for overpressure situations, a capillary thermal cut-out, a combined metal valve acting as both check and safety valve, and frost protection keeping the water above 5 °C. The external capillary thermostat is adjusted without opening the housing.
HFO Closed-Cells insulation over 33 mm thick
The new-generation polyurethane system has a fine closed-cell structure that holds heat between heating cycles. The unit is rated energy class B.
Specifications
General
Power and supply
Dimensions and weight
Materials
Warranty
General
| CAPACITY | 80 L |
| HEIGHT | 113.00 см |
| DIAMETER SM | 39.0 см |
| TYPE | ВЕРТИКАЛЕН |
| NOMINAL POWER KW | 3 |
| Brand | ELDOM |
| MODEL: | WV08039SL 3KW GREEN LINE |
| CAPACITY: | 80 L |
| TANK CAPACITY: | 73.0 L |
| HEIGHT: | 113.00 см |
| DIAMETER SM: | 39.0 см |
| TYPE: | ВЕРТИКАЛЕН |
| TANK TYPE: | GLAZED |
| HEATER TYPE: | COPPER |
| THERMOREGULATOR: | МЕХАНИЧЕН |
| ENERGY CLASS: | B |
| ELECTRICAL POWER TYPE: | MONOPHASIC |
| HEAT EXCHANGER: | Yes |
| PROTECTION: | 6 СТЕПЕННА |
| WARRANTY: | 60 MONTHS |
| EAN | 3800035726619 |
