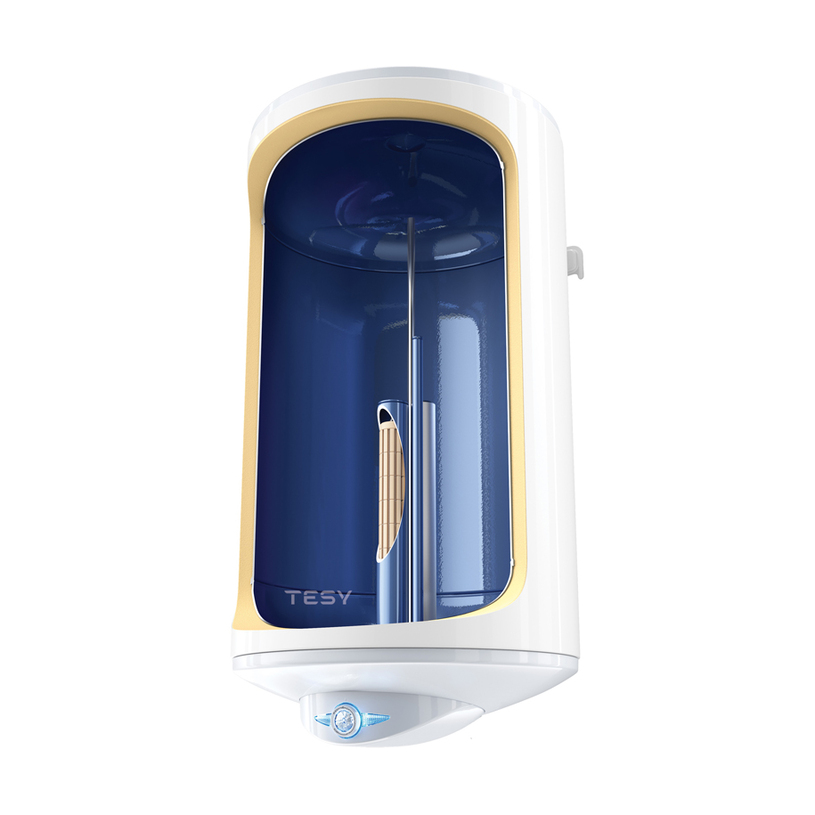

TESY GCV 804424C B14 TSR Storage Water Heater, 80 L, 2400 W
Ceramic heating element and CRYSTALTECH enamel built for hard-water conditions.
The TESY GCV 804424C B14 TSR is a vertical 80 L storage water heater with a real capacity of 82 L and a glass-ceramic lined tank. It reaches 60 °C in 1 hour 47 minutes and delivers 147 L of mixed water at 40 °C, enough for a family's showers back to back. A mechanical thermostat with capillary sensing and a two-colour indicator keep operation simple.
Ceramic heating element that resists limescale
Ceramic does not attract scale the way an exposed metal element does, and it works silently. The element keeps its efficiency far longer in areas with hard tap water.
Up to 16% lower heat losses with INSUTECH
The insulation is distributed evenly around the whole body and the design eliminates the thermal bridge between tank and casing. Hot water stays hot longer between heating cycles.
CRYSTALTECH enamel and anode protection for the tank
The glass-ceramic coating covers a plasma-welded cylinder, while the magnesium anode takes on the corrosion load. The hot-water outlet pipe is stainless steel and handles high temperature and pressure.
44 cm diameter for a compact fit
At 85.8 cm high and 46.7 cm deep, the body fits above sanitary fittings and into recesses in small bathrooms. Mounting is vertical, on a single-phase 230 V supply.
BILIGHT status indication
Red means the heater is working, blue means the water is ready. The status reads at a glance, without checking a dial.
Specifications
General
Power and energy
Dimensions
Warranty
General
| CAPACITY | 80 L |
| HEIGHT | 85.80 см |
| DIAMETER SM | 44.0 см |
| TYPE | ВЕРТИКАЛЕН |
| NOMINAL POWER KW | 2.400 |
| Brand | TESY |
| MODEL: | GCV 804424C B14 TSR |
| CAPACITY: | 80 L |
| TANK CAPACITY: | 80.0 L |
| HEIGHT: | 85.80 см |
| DIAMETER SM: | 44.0 см |
| TYPE: | ВЕРТИКАЛЕН |
| TANK TYPE: | GLASS-CERAMIC |
| HEATER TYPE: | CERAMIC |
| THERMOREGULATOR: | МЕХАНИЧЕН |
| ENERGY CLASS: | C |
| ELECTRICAL POWER TYPE: | MONOPHASIC |
| ANODE TESTER: | No |
| ANNUAL ENERGY CONSUMPTION: | 2748 |
| HEAT EXCHANGER: | No |
| PROTECTION: | АНОДНА |
| WARRANTY: | 60 MONTHS |
| EAN | 3800879129676 |
