TEDAN CLASSIC 80L Storage Water Heater 3kW
80 litres of hot water with an enamelled tank and durable copper heating element.
The TEDAN CLASSIC 80L is a vertical electric storage water heater with a real 80-litre capacity, ideal for the bathroom and kitchen at home. Its 3 kW element heats water quickly, while the enamelled tank ensures long service life. It mounts vertically on the wall and runs on single-phase power.

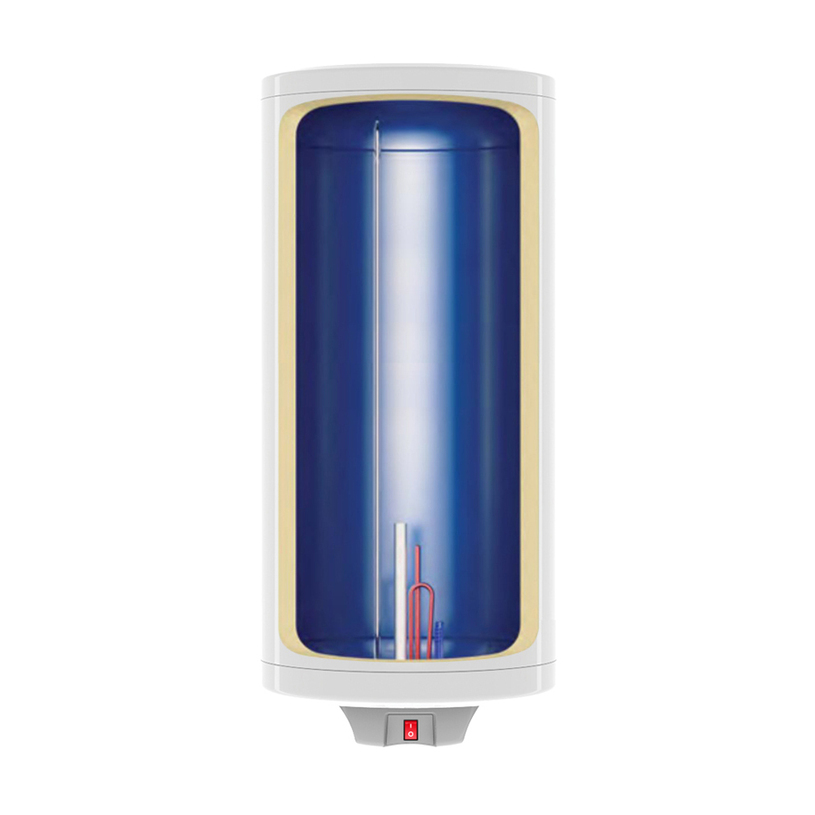

Enamelled tank with high corrosion resistance
The TEDAN CLASSIC tank is made of high-grade DC04EK steel and coated with a quartz-rich electrostatic powder enamel. This keeps the walls corrosion-free for years. The tank is pressure-tested to 12 Bar for peace of mind in daily use.
Copper heating element with anti-freeze protection
The high-grade copper element in the TEDAN CLASSIC heats water efficiently and resists limescale. The Thermowatt (Italy) thermostat holds temperatures up to 72ยฐC and adds anti-freeze protection. That keeps the unit safe to use even in unheated rooms in winter.
Replaceable magnesium anode for longer life
The three-component magnesium anode in the TEDAN CLASSIC protects the tank from corrosion and lasts up to 50% longer. The anode can be easily removed and replaced during servicing. Its square flange has a special design for added reliability.
Effective insulation for lower heat loss
The TEDAN CLASSIC uses CFC-free polyurethane foam insulation (made by Bayer, Germany), 25โ49 mm thick. It retains heat longer and cuts the electricity needed for reheating. IPX4 protection allows safe installation in the damp environment of a bathroom.
Specifications
General
Materials
Power & supply
General
Dimensions & weight
Warranty
| CAPACITY | 80 L |
| HEIGHT | 100.40 ัะผ |
| DIAMETER SM | 39.5 ัะผ |
| TYPE | ะะะ ะขะะะะะะ |
| NOMINAL POWER KW | 3 |
| Brand | TEDAN |
| MODEL: | CLASSIC 80ะป |
| CAPACITY: | 80 L |
| TANK CAPACITY: | 80.0 L |
| HEIGHT: | 100.40 ัะผ |
| DIAMETER SM: | 39.5 ัะผ |
| TYPE: | ะะะ ะขะะะะะะ |
| TANK TYPE: | GLAZED |
| HEATER TYPE: | COPPER |
| THERMOREGULATOR: | Yes |
| ENERGY CLASS: | C |
| ELECTRICAL POWER TYPE: | MONOPHASIC |
| ANODE TESTER: | No |
| ANNUAL ENERGY CONSUMPTION: | 1429 |
| HEAT EXCHANGER: | No |
| PROTECTION: | IPX4 |
| WARRANTY: | 72 MONTHS |
| EAN | 8600034909922 |
