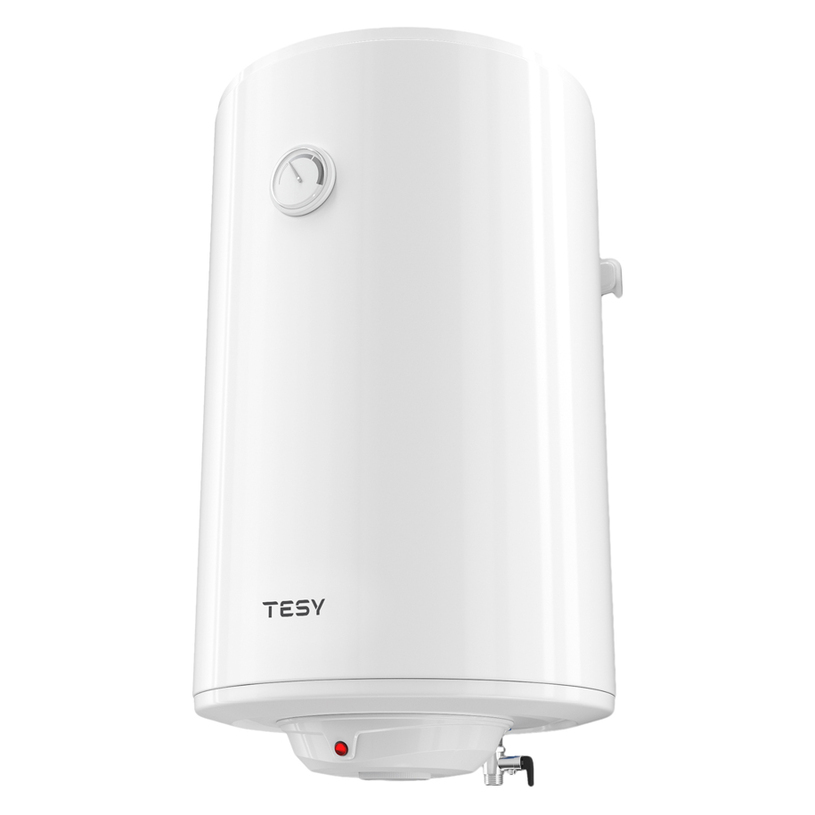

TESY CTVOL 804415 D07 TR Storage Water Heater, 80 L, 1500 W, Vertical
Glazed tank and copper heating element for everyday hot water in the bathroom and kitchen.
The TESY CTVOL 804415 D07 TR is a wall-mounted vertical electric water heater in the 80 L class, with 71 L of real capacity. It runs on a single-phase supply and combines a glazed steel tank with a copper heating element and an adjustable thermostat.
71 L of real capacity for two to three people
Rated at 80 L, the heater delivers up to 91 L of mixed water at 40 °C. That covers back-to-back showers and washing up without waiting in between.
Glazed tank with a copper heating element
The vitreous enamel coating shields the steel from corrosion in permanent contact with water. The copper element is accessible through the flange, and the built-in anode tester shows the condition of the protective anode.
Compact body just 44 cm in diameter
At 74.00 cm high, it fits above a washing machine or inside a narrow bathroom recess. Vertical wall mounting keeps the floor clear.
Thermostat adjustable up to 70 °C
Temperature is set from an external knob, and a lower setting limits limescale and annual energy use. IP24 protection allows installation in a wet room.
Specifications
Main
Materials
Main
Power supply
Main
Dimensions
Main
Warranty
| CAPACITY | 80 L |
| HEIGHT | 74.00 см |
| DIAMETER SM | 44.0 см |
| TYPE | VERTICAL |
| NOMINAL POWER KW | 1.500 |
| Brand | TESY |
| MODEL: | CTVOL 804415 D07 TR |
| CAPACITY: | 80 L |
| TANK CAPACITY: | 71.0 L |
| HEIGHT: | 74.00 см |
| DIAMETER SM: | 44.0 см |
| TYPE: | VERTICAL |
| TANK TYPE: | GLAZED |
| HEATER TYPE: | COPPER |
| THERMOREGULATOR: | Yes |
| ENERGY CLASS: | C |
| ELECTRICAL POWER TYPE: | MONOPHASIC |
| ANODE TESTER: | Yes |
| ANNUAL ENERGY CONSUMPTION: | 1424 |
| PROTECTION: | IP24 |
| WARRANTY: | 36 MONTHS |
| EAN | 3800879132324 |
