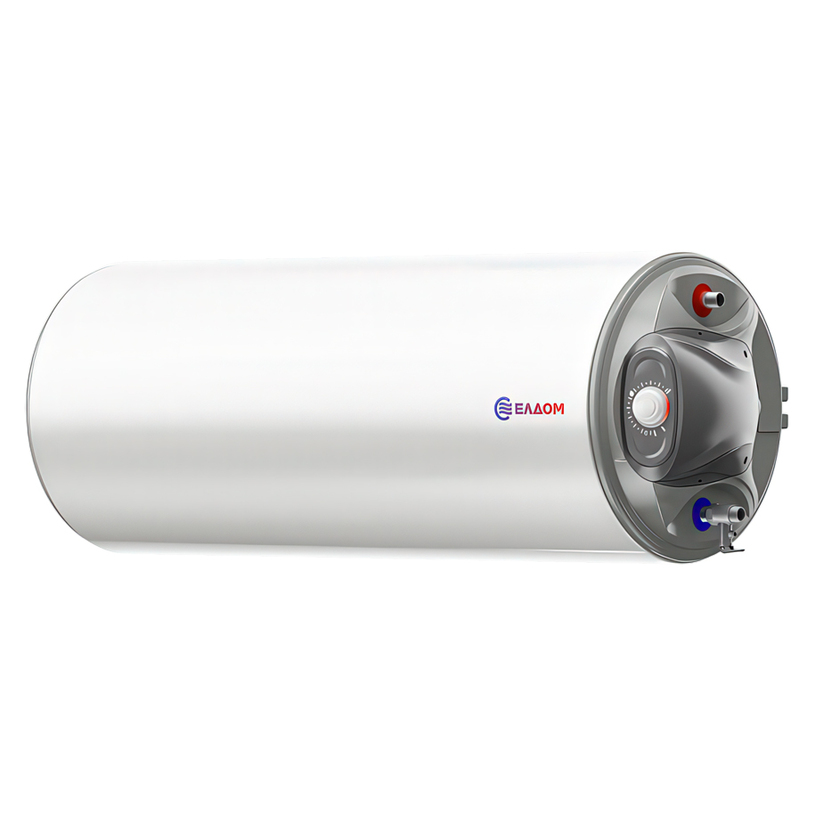

ELDOM WHF07039FR Horizontal Storage Water Heater, 70 L, 3 kW
A slim 387 mm body made for wall mounting above a door or inside a false ceiling.
The ELDOM WHF07039FR is a horizontal storage water heater with 68 L of usable capacity and an enamelled tank, made in Bulgaria. Connections are on the right, control is mechanical and heating is handled by a 3 kW immersion element.
Horizontal mounting with right-side connections
The pipes sit diametrically opposite each other, so the heater connects easily in tight spots above a door, in a bathroom or in a utility room. The body measures 1055 mm long and 387 mm in diameter.
SHIELD zirconium enamel protection
The tank is lined with a wear-resistant zirconium enamel formula, while two magnesium anodes guard the entire inner volume against corrosion. The manufacturer backs the unit with a 5-year warranty.
Six-level protection and IP24 rating
A patented round flange handles pressure surges, and a capillary thermal cut-out interrupts the supply in case of overheating. A combined metal valve with non-return and safety functions is included.
60 °C ECO setting and Twin LED indication
A combined knob switches the heater on and sets the temperature, while the LED glows red during heating and white once the target is reached. The Holiday setting keeps the water above 5 °C when the home is empty.
HFO Closed Cells insulation over 33 mm thick
The new-generation polyurethane system has a fine closed-cell structure that limits standby losses between heating cycles. Annual energy consumption is 1413 kWh, energy class C.
Specifications
General
Power and supply
Materials and build
Dimensions and weight
In the box
Warranty
| CAPACITY | 70 L |
| HEIGHT | 106.00 см |
| DIAMETER SM | 39.0 см |
| TYPE | Horizontal |
| NOMINAL POWER KW | 3 |
| Brand | ELDOM |
| MODEL: | WHF07039FR |
| CAPACITY: | 70 L |
| TANK CAPACITY: | 68.0 L |
| HEIGHT: | 106.00 см |
| DIAMETER SM: | 39.0 см |
| TYPE: | Horizontal |
| TANK TYPE: | GLAZED |
| HEATER TYPE: | COPPER |
| THERMOREGULATOR: | MECHANICAL |
| ENERGY CLASS: | C |
| ELECTRICAL POWER TYPE: | MONOPHASIC |
| ANNUAL ENERGY CONSUMPTION: | 1413 |
| WARRANTY: | 60 MONTHS |
| EAN | 3800035780420 |
